Multi-condition signalling network inference#
In this notebook we show how to infer signalling networks for a multicondition setting.
Here we will use mouse RNA-seq data of a multicondition study, where we will compare normal to spontaneous leukemia and Sleeping-Beauty (SB) mediated leukemia.
In the first part, we will show how to estimate Transcription Factor activities from gene expression data, following the Decoupler tutorial for functional analysis.
Then, we will infer 2 networks for each of the 2 conditions and analyse differences.
Author: Irene Rigato (Francesca Finotello’s group)
Reviewers: Sophia Müller-Dott, Pablo Rodriguez-Mier
# --- Saezlab tools ---
# https://decoupler-py.readthedocs.io/
import gzip
import os
import shutil
import tempfile
import urllib.request
import decoupler as dc
import numpy as np
# https://omnipathdb.org/
import omnipath as op
# Additional packages
import pandas as pd
# --- Additional libs ---
# Pydeseq for differential expression analysis
from pydeseq2.dds import DefaultInference, DeseqDataSet
from pydeseq2.ds import DeseqStats
# https://saezlab.github.io/
import corneto as cn
cn.info()
---------------------------------------------------------------------------
ModuleNotFoundError Traceback (most recent call last)
Cell In[1], line 13
10 import numpy as np
12 # https://omnipathdb.org/
---> 13 import omnipath as op
15 # Additional packages
16 import pandas as pd
ModuleNotFoundError: No module named 'omnipath'
max_time = 300
seed = 0
# loading GEO GSE148679 dataset
url = "https://www.ncbi.nlm.nih.gov/geo/download/?acc=GSE148679&format=file&file=GSE148679%5Fcounts%5Fgsea%5Fanalysis%2Etxt%2Egz"
adata = None
with tempfile.TemporaryDirectory() as tmpdirname:
# Path for the gzipped file in the temp folder
gz_file_path = os.path.join(tmpdirname, "counts.txt.gz")
# Download the file
with urllib.request.urlopen(url) as response:
with open(gz_file_path, "wb") as out_file:
shutil.copyfileobj(response, out_file)
# Decompress the file
decompressed_file_path = gz_file_path[:-3] # Removing '.gz' extension
with gzip.open(gz_file_path, "rb") as f_in:
with open(decompressed_file_path, "wb") as f_out:
shutil.copyfileobj(f_in, f_out)
adata = pd.read_csv(decompressed_file_path, index_col=0, sep="\t").T
adata.head()
| ID | Itm2a | Sergef | Fam109a | Dhx9 | Fam71e2 | Ssu72 | Olfr1018 | Eif2b2 | Mks1 | Hebp2 | ... | Olfr372 | Gosr1 | Ctsw | Ryk | Rhd | Pxmp4 | Gm25500 | 4930455C13Rik | Prss39 | Reg4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ebf1.1 | 265 | 332 | 306 | 27823 | 0 | 2969 | 0 | 2614 | 231 | 6 | ... | 0 | 2967 | 674 | 150 | 708 | 830 | 29 | 9 | 7 | 0 |
| Ebf1.2 | 175 | 471 | 335 | 35978 | 0 | 3108 | 0 | 2924 | 192 | 0 | ... | 0 | 2724 | 155 | 142 | 869 | 867 | 5 | 4 | 16 | 0 |
| Ebf1.3 | 266 | 382 | 325 | 30367 | 0 | 3207 | 0 | 2940 | 211 | 7 | ... | 0 | 2547 | 87 | 54 | 291 | 767 | 7 | 7 | 6 | 0 |
| Ebf1.4 | 212 | 388 | 331 | 30406 | 0 | 3168 | 0 | 2871 | 209 | 8 | ... | 0 | 2568 | 169 | 115 | 1244 | 829 | 5 | 1 | 4 | 0 |
| PE.1 | 321 | 312 | 290 | 22272 | 0 | 2631 | 0 | 2236 | 109 | 10 | ... | 0 | 2466 | 837 | 191 | 921 | 888 | 2 | 2 | 8 | 0 |
5 rows × 24420 columns
from anndata import AnnData
adata = AnnData(adata, dtype=np.float32)
adata.var_names_make_unique()
adata
AnnData object with n_obs × n_vars = 53 × 24420
# renaming conditions for clarity
adata.obs["condition"] = np.select(
[
adata.obs.index.str.contains("WT"),
adata.obs.index.str.contains("Pax5"),
adata.obs.index.str.contains("Ebf1"),
adata.obs.index.str.contains("Leuk"),
adata.obs.index.str.contains("SB"),
],
["Normal", "Normal", "Normal", "Leukemic_spontaneous", "Leukemic_SB"],
default="Normal",
)
# Visualize metadata
adata.obs["condition"].value_counts()
condition
Leukemic_SB 31
Normal 15
Leukemic_spontaneous 7
Name: count, dtype: int64
Splitting data for network inference and validation#
We will validate the network for the comparison Leukemic_SB vs Normal (enough samples)
adata1 = adata[adata.obs["condition"].isin(["Normal", "Leukemic_spontaneous"])].copy()
adata2 = adata[adata.obs["condition"].isin(["Normal", "Leukemic_SB"])].copy()
Differential expression analysis per condition#
Contrast 1: Leukemic_spontaneous vs Normal#
# Obtain genes that pass the thresholds
genes1 = dc.filter_by_expr(
adata1,
group="condition",
min_count=10,
min_total_count=15,
large_n=10,
min_prop=0.8,
)
# Filter by these genes
adata1 = adata1[:, genes1].copy()
adata1
AnnData object with n_obs × n_vars = 22 × 13585
obs: 'condition'
# Estimation of differential expression
inference1 = DefaultInference()
dds1 = DeseqDataSet(
adata=adata1,
design_factors="condition",
refit_cooks=True,
inference=inference1,
)
dds1.deseq2()
Using None as control genes, passed at DeseqDataSet initialization
stat_res_leu1 = DeseqStats(dds1, contrast=["condition", "Leukemic_spontaneous", "Normal"], inference=inference1)
stat_res_leu1.summary()
Log2 fold change & Wald test p-value: condition Leukemic_spontaneous vs Normal
baseMean log2FoldChange lfcSE stat pvalue \
ID
Itm2a 319.854773 1.040954 0.173013 6.016633 1.780827e-09
Sergef 518.491011 1.165972 0.102389 11.387652 4.818002e-30
Fam109a 353.074249 0.270614 0.099378 2.723069 6.467861e-03
Dhx9 28622.656109 -0.009588 0.058553 -0.163746 8.699308e-01
Ssu72 3007.691599 -0.047053 0.044517 -1.056965 2.905276e-01
... ... ... ... ... ...
Ctsw 204.692803 -1.015983 0.513345 -1.979142 4.780005e-02
Ryk 82.285327 -2.689443 0.325347 -8.266384 1.380837e-16
Rhd 519.107839 -4.933983 0.449259 -10.982487 4.639733e-28
Pxmp4 791.774976 -0.367077 0.068277 -5.376332 7.601849e-08
Gm25500 9.166514 0.879435 0.429185 2.049083 4.045397e-02
padj
ID
Itm2a 5.850674e-09
Sergef 9.569088e-29
Fam109a 1.008099e-02
Dhx9 8.900444e-01
Ssu72 3.376523e-01
... ...
Ctsw 6.505999e-02
Ryk 8.512167e-16
Rhd 7.603230e-27
Pxmp4 2.122300e-07
Gm25500 5.581062e-02
[13585 rows x 6 columns]
results_df1 = stat_res_leu1.results_df
results_df1.sort_values(by="padj", ascending=True, inplace=False).head()
| baseMean | log2FoldChange | lfcSE | stat | pvalue | padj | |
|---|---|---|---|---|---|---|
| ID | ||||||
| Egfl6 | 958.998149 | -6.296339 | 0.244241 | -25.779249 | 1.515461e-146 | 1.281368e-142 |
| Polm | 2883.081884 | -7.255498 | 0.281540 | -25.770766 | 1.886446e-146 | 1.281368e-142 |
| Kdm5b | 2202.514358 | -5.510307 | 0.220789 | -24.957387 | 1.775396e-137 | 8.039587e-134 |
| Milr1 | 1647.365126 | 1.244237 | 0.050208 | 24.781432 | 1.421631e-135 | 4.828216e-132 |
| Adgre5 | 10346.763067 | -3.102891 | 0.125360 | -24.751781 | 2.966356e-135 | 8.059589e-132 |
Contrast 2: Leukemic_SB vs Normal#
# Obtain genes that pass the thresholds
genes2 = dc.filter_by_expr(
adata2,
group="condition",
min_count=10,
min_total_count=15,
large_n=10,
min_prop=0.8,
)
# Filter by these genes
adata2 = adata2[:, genes2].copy()
adata2
AnnData object with n_obs × n_vars = 46 × 13404
obs: 'condition'
# Estimation of differential expression
inference2 = DefaultInference()
dds2 = DeseqDataSet(
adata=adata2,
design_factors="condition",
refit_cooks=True,
inference=inference2,
)
dds2.deseq2()
Using None as control genes, passed at DeseqDataSet initialization
stat_res_leu2 = DeseqStats(dds2, contrast=["condition", "Leukemic_SB", "Normal"], inference=inference2)
stat_res_leu2.summary()
Log2 fold change & Wald test p-value: condition Leukemic_SB vs Normal
baseMean log2FoldChange lfcSE stat pvalue \
ID
Itm2a 336.316323 0.710476 0.224228 3.168537 1.532085e-03
Sergef 692.078769 1.218302 0.070644 17.245742 1.204559e-66
Fam109a 382.268647 0.329745 0.097073 3.396873 6.816065e-04
Dhx9 27794.304719 -0.031645 0.064081 -0.493828 6.214276e-01
Ssu72 2994.457694 0.004410 0.061412 0.071816 9.427485e-01
... ... ... ... ... ...
Ctsw 151.303280 -1.150780 0.374313 -3.074381 2.109397e-03
Ryk 50.267450 -2.400835 0.309995 -7.744750 9.576982e-15
Rhd 259.540718 -4.740190 0.424503 -11.166440 5.951875e-29
Pxmp4 783.587183 -0.148554 0.095118 -1.561793 1.183368e-01
Gm25500 8.618646 0.386326 0.302098 1.278810 2.009640e-01
padj
ID
Itm2a 2.906321e-03
Sergef 2.409837e-64
Fam109a 1.365862e-03
Dhx9 6.749000e-01
Ssu72 9.529865e-01
... ...
Ctsw 3.916116e-03
Ryk 6.703387e-14
Rhd 1.325231e-27
Pxmp4 1.573130e-01
Gm25500 2.530504e-01
[13404 rows x 6 columns]
results_df2 = stat_res_leu2.results_df
results_df2.sort_values(by="padj", ascending=True, inplace=False).head()
| baseMean | log2FoldChange | lfcSE | stat | pvalue | padj | |
|---|---|---|---|---|---|---|
| ID | ||||||
| Mfsd2b | 2252.744179 | -9.412063 | 0.308793 | -30.480194 | 4.769746e-204 | 6.393368e-200 |
| Itga2b | 8434.243135 | -11.914356 | 0.401437 | -29.679287 | 1.421232e-193 | 9.525096e-190 |
| Adgrl4 | 148.349960 | -9.117488 | 0.322229 | -28.295027 | 3.978805e-176 | 1.777730e-172 |
| Gp1ba | 2396.209744 | -8.226071 | 0.323265 | -25.446857 | 7.648284e-143 | 2.562940e-139 |
| Ppbp | 17321.675345 | -15.613716 | 0.621843 | -25.108767 | 3.989417e-139 | 1.069483e-135 |
Prior knowledge with Decoupler and Omnipath#
# Retrieve CollecTRI gene regulatory network (through Omnipath)
collectri = dc.get_collectri(organism="mouse", split_complexes=False)
collectri.head()
| source | target | weight | PMID | |
|---|---|---|---|---|
| 0 | Myc | Tert | 1 | 10022128;10491298;10606235;10637317;10723141;1... |
| 1 | Spi1 | Bglap | 1 | 10022617 |
| 2 | Spi1 | Bglap3 | 1 | 10022617 |
| 3 | Spi1 | Bglap2 | 1 | 10022617 |
| 4 | Smad3 | Jun | 1 | 10022869;12374795 |
TF activity inference per condition#
Contrast 1: Leukemic_spontaneous vs Normal#
mat1 = results_df1[["stat"]].T.rename(index={"stat": "Leukemic_spontaneous.vs.Normal"})
mat1
| ID | Itm2a | Sergef | Fam109a | Dhx9 | Ssu72 | Eif2b2 | Mks1 | Vps28 | Setd6 | Psma4 | ... | Cd37 | Rag2 | Itgb1bp2 | Sec23ip | Gosr1 | Ctsw | Ryk | Rhd | Pxmp4 | Gm25500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leukemic_spontaneous.vs.Normal | 6.016633 | 11.387652 | 2.723069 | -0.163746 | -1.056965 | 7.738037 | 3.636643 | 2.671034 | 6.008164 | 3.939368 | ... | 3.891251 | -2.875219 | -0.371611 | -11.321478 | 2.340759 | -1.979142 | -8.266384 | -10.982487 | -5.376332 | 2.049083 |
1 rows × 13585 columns
tf_acts1, tf_pvals1 = dc.run_ulm(mat=mat1, net=collectri, verbose=True)
tf_acts1
Running ulm on mat with 1 samples and 13585 targets for 582 sources.
| Abl1 | Ahr | Aire | Apex1 | Ar | Arid1a | Arid3a | Arid3b | Arid4a | Arid4b | ... | Zic1 | Zic2 | Zkscan7 | Znf143 | Znf148 | Znf263 | Znf354c | Znf382 | Znf436 | Znf76 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leukemic_spontaneous.vs.Normal | 1.045655 | 0.315712 | -2.055446 | 0.340905 | -1.094879 | -0.176577 | -1.167034 | -1.821818 | 0.263631 | 2.369551 | ... | 0.530625 | -0.030327 | 1.025575 | -0.545273 | -1.862967 | -0.883297 | 0.466678 | -1.014019 | -1.812489 | -0.305558 |
1 rows × 582 columns

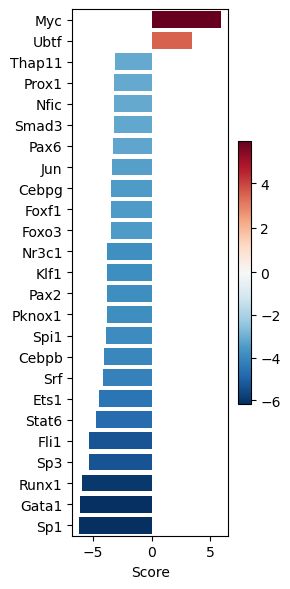

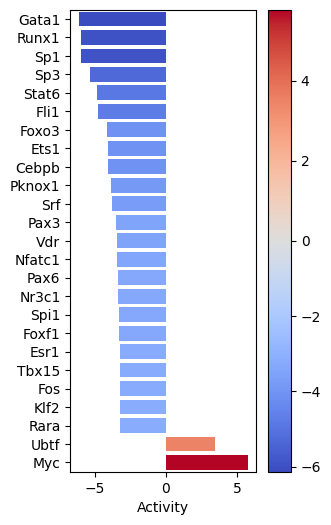

dc.plot_barplot(
acts=tf_acts1,
contrast="Leukemic_spontaneous.vs.Normal",
top=25,
vertical=True,
figsize=(3, 6),
)
Contrast 2: Leukemic_SB vs Normal#
mat2 = results_df2[["stat"]].T.rename(index={"stat": "Leukemic_SB.vs.Normal"})
mat2
| ID | Itm2a | Sergef | Fam109a | Dhx9 | Ssu72 | Eif2b2 | Mks1 | Vps28 | Setd6 | Psma4 | ... | Cd37 | Rag2 | Itgb1bp2 | Sec23ip | Gosr1 | Ctsw | Ryk | Rhd | Pxmp4 | Gm25500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leukemic_SB.vs.Normal | 3.168537 | 17.245742 | 3.396873 | -0.493828 | 0.071816 | 6.81284 | 6.314823 | 3.452622 | 5.558161 | 5.259825 | ... | 1.184029 | -2.941684 | -2.355502 | -7.619793 | 2.099912 | -3.074381 | -7.74475 | -11.16644 | -1.561793 | 1.27881 |
1 rows × 13404 columns
tf_acts2, tf_pvals2 = dc.run_ulm(mat=mat2, net=collectri, verbose=True)
tf_acts2
Running ulm on mat with 1 samples and 13404 targets for 571 sources.
| Abl1 | Ahr | Aire | Apex1 | Ar | Arid1a | Arid3a | Arid3b | Arid4a | Arid4b | ... | Zic1 | Zic2 | Zkscan7 | Znf143 | Znf148 | Znf263 | Znf354c | Znf382 | Znf436 | Znf76 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Leukemic_SB.vs.Normal | 1.053067 | 0.998199 | -0.641643 | 0.976317 | -0.111084 | 0.676713 | -0.908069 | -1.489229 | 0.929773 | 2.253084 | ... | 0.658906 | -0.049635 | 1.316132 | -0.616619 | -1.524429 | -0.361584 | 1.869067 | -1.975475 | -1.940144 | 0.405888 |
1 rows × 571 columns

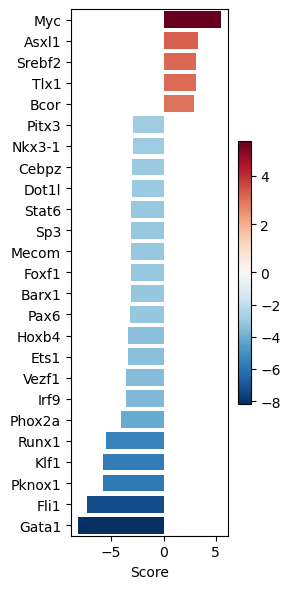

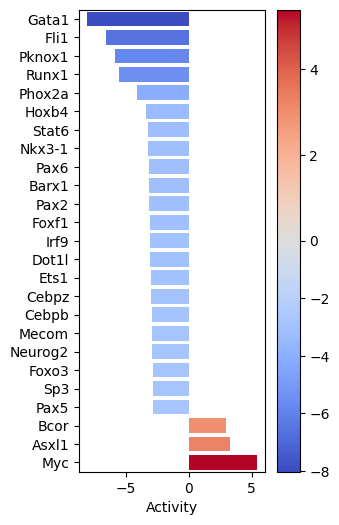

dc.plot_barplot(
acts=tf_acts2,
contrast="Leukemic_SB.vs.Normal",
top=25,
vertical=True,
figsize=(3, 6),
)
Retrieving potential receptors per condition#
# We obtain ligand-receptor interactions from Omnipath, and we keep only the receptors
# This is our list of a prior potential receptors from which we will infer the network
unique_receptors = set(
op.interactions.LigRecExtra.get(organisms="mouse", genesymbols=True)["target_genesymbol"].values.tolist()
)
len(unique_receptors)
849
Contrast 1: Leukemic_spontaneous vs Normal#
df_de_receptors1 = results_df1.loc[results_df1.index.intersection(unique_receptors)]
df_de_receptors1 = df_de_receptors1.sort_values(by="stat", ascending=False)
# We will take the top 20 receptors that increased the expression after treatment
df_top_receptors1 = df_de_receptors1.head(30)
df_top_receptors1.head()
| baseMean | log2FoldChange | lfcSE | stat | pvalue | padj | |
|---|---|---|---|---|---|---|
| ID | ||||||
| Mrc1 | 314.324326 | 3.312083 | 0.179665 | 18.434750 | 6.913703e-76 | 2.935083e-73 |
| St14 | 1073.819725 | 1.904158 | 0.116095 | 16.401768 | 1.857530e-60 | 3.077383e-58 |
| Cd48 | 5533.470898 | 0.664655 | 0.054604 | 12.172257 | 4.368342e-34 | 1.216064e-32 |
| Ifngr1 | 6551.268902 | 1.418280 | 0.120961 | 11.725091 | 9.479917e-32 | 2.182791e-30 |
| Lrrc4c | 82.859784 | 10.019258 | 0.895645 | 11.186639 | 4.740624e-29 | 8.575416e-28 |
Contrast 2: Leukemic_SB vs Normal#
df_de_receptors2 = results_df2.loc[results_df2.index.intersection(unique_receptors)]
df_de_receptors2 = df_de_receptors2.sort_values(by="stat", ascending=False)
# We will take the top 20 receptors that increased the expression after treatment
df_top_receptors2 = df_de_receptors2.head(30)
df_top_receptors2.head()
| baseMean | log2FoldChange | lfcSE | stat | pvalue | padj | |
|---|---|---|---|---|---|---|
| ID | ||||||
| Lsr | 770.417182 | 4.360408 | 0.346097 | 12.598814 | 2.143428e-36 | 8.425371e-35 |
| Ptprs | 5164.424536 | 1.303309 | 0.109463 | 11.906392 | 1.096190e-32 | 3.250738e-31 |
| Nlgn2 | 1309.701665 | 1.950302 | 0.165263 | 11.801208 | 3.847485e-32 | 1.104319e-30 |
| Cd244 | 2529.473998 | 2.992844 | 0.255033 | 11.735143 | 8.418360e-32 | 2.341073e-30 |
| Lrrc4c | 267.125842 | 10.650499 | 0.916744 | 11.617744 | 3.348637e-31 | 8.783783e-30 |
Inferring intracellular signalling network with CORNETO#
cn.info()
|
|
from corneto.methods.future import CarnivalFlow
# CarnivalFlow.show_citations()
Setting prior knowledge graph#
pkn = op.interactions.OmniPath.get(organisms="mouse", databases=["SIGNOR"], genesymbols=True)
pkn = pkn[pkn.consensus_direction == True]
pkn.head()
| source | target | source_genesymbol | target_genesymbol | is_directed | is_stimulation | is_inhibition | consensus_direction | consensus_stimulation | consensus_inhibition | curation_effort | references | sources | n_sources | n_primary_sources | n_references | references_stripped | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | P0C605 | Q9QZC1 | Prkg1 | Trpc3 | True | False | True | True | False | True | 9 | HPRD:14983059;KEA:14983059;ProtMapper:14983059... | HPRD;HPRD_KEA;HPRD_MIMP;KEA;MIMP;PhosphoPoint;... | 15 | 8 | 2 | 14983059;16331690 |
| 1 | P0C605 | Q9WVC5 | Prkg1 | Trpc7 | True | True | False | True | True | False | 3 | SIGNOR:21402151;TRIP:21402151;iPTMnet:21402151 | SIGNOR;TRIP;iPTMnet | 3 | 3 | 1 | 21402151 |
| 2 | Q8K2C7 | Q9EPK8 | Os9 | Trpv4 | True | True | True | True | True | True | 3 | HPRD:17932042;SIGNOR:17932042;TRIP:17932042 | HPRD;SIGNOR;TRIP | 3 | 3 | 1 | 17932042 |
| 3 | P35821 | Q91WD2 | Ptpn1 | Trpv6 | True | False | True | True | False | True | 11 | DEPOD:15894168;DEPOD:17197020;HPRD:15894168;In... | DEPOD;HPRD;IntAct;Lit-BM-17;SIGNOR;SPIKE_LC;TRIP | 7 | 6 | 2 | 15894168;17197020 |
| 4 | P68040 | Q8CIR4 | Rack1 | Trpm6 | True | False | True | True | False | True | 2 | SIGNOR:18258429;TRIP:18258429 | SIGNOR;TRIP | 2 | 2 | 1 | 18258429 |
pkn["interaction"] = pkn["is_stimulation"].astype(int) - pkn["is_inhibition"].astype(int)
sel_pkn = pkn[["source_genesymbol", "interaction", "target_genesymbol"]]
sel_pkn.head()
| source_genesymbol | interaction | target_genesymbol | |
|---|---|---|---|
| 0 | Prkg1 | -1 | Trpc3 |
| 1 | Prkg1 | 1 | Trpc7 |
| 2 | Os9 | 0 | Trpv4 |
| 3 | Ptpn1 | -1 | Trpv6 |
| 4 | Rack1 | -1 | Trpm6 |
# We create the CORNETO graph by importing the edges and interaction
G = cn.Graph.from_sif_tuples([(r[0], r[1], r[2]) for _, r in sel_pkn.iterrows() if r[1] != 0])
G.shape # nodes, edges
(4304, 9505)
Identifying target TFs per condition#
max_pval = 0.01
Contrast 1: Leukemic_spontaneous vs Normal#
# As measurements, we take the estimated TFs, we will filter out TFs with p-val > 0.001
significant_tfs1 = (
tf_acts1[tf_pvals1 <= max_pval].T.dropna().sort_values(by="Leukemic_spontaneous.vs.Normal", ascending=False)
)
significant_tfs1.head()
| Leukemic_spontaneous.vs.Normal | |
|---|---|
| Myc | 5.768653 |
| Ubtf | 3.480495 |
| Mtf2 | 2.688996 |
| Runx3 | -2.588453 |
| Elf3 | -2.588482 |
# We keep only the ones in the PKN graph
measurements1 = significant_tfs1.loc[significant_tfs1.index.intersection(G.V)].to_dict()[
"Leukemic_spontaneous.vs.Normal"
]
measurements1
{'Myc': 5.768653392791748,
'Ubtf': 3.4804954528808594,
'Runx3': -2.5884528160095215,
'Elf3': -2.58848237991333,
'Mecom': -2.608494997024536,
'Cebpa': -2.615208387374878,
'Nkx3-1': -2.6257927417755127,
'Esr2': -2.6459813117980957,
'Pax2': -2.677741527557373,
'Maf': -2.685983419418335,
'Mef2d': -2.7207248210906982,
'Phox2a': -2.782597303390503,
'Jun': -2.8008198738098145,
'Egr1': -2.8238978385925293,
'Pgr': -2.8435566425323486,
'Hmga1': -2.887751817703247,
'Yy1': -2.9141457080841064,
'Tcf3': -2.942206621170044,
'Ppara': -2.94732928276062,
'Mef2a': -2.970165491104126,
'Smad3': -2.971665382385254,
'Myod1': -2.983170986175537,
'Smad2': -3.014216899871826,
'Nfic': -3.015226125717163,
'Plag1': -3.0289695262908936,
'Foxo1': -3.139951229095459,
'Cebpg': -3.163689374923706,
'Ppard': -3.187347412109375,
'Rara': -3.2031116485595703,
'Fos': -3.221236228942871,
'Esr1': -3.246117115020752,
'Spi1': -3.3310794830322266,
'Nr3c1': -3.350456953048706,
'Pax6': -3.3512790203094482,
'Nfatc1': -3.4140117168426514,
'Vdr': -3.468764066696167,
'Pax3': -3.476954936981201,
'Srf': -3.7604994773864746,
'Pknox1': -3.8543660640716553,
'Cebpb': -4.067713737487793,
'Ets1': -4.081283092498779,
'Foxo3': -4.1075849533081055,
'Fli1': -4.756601810455322,
'Stat6': -4.842164516448975,
'Sp3': -5.319258689880371,
'Sp1': -5.941048622131348,
'Runx1': -5.983950138092041,
'Gata1': -6.134815216064453}
Contrast 2: Leukemic_SB vs Normal#
# As measurements, we take the estimated TFs, we will filter out TFs with p-val > 0.001
significant_tfs2 = tf_acts2[tf_pvals2 <= max_pval].T.dropna().sort_values(by="Leukemic_SB.vs.Normal", ascending=False)
significant_tfs2.head()
| Leukemic_SB.vs.Normal | |
|---|---|
| Myc | 5.395146 |
| Asxl1 | 3.256416 |
| Bcor | 2.956437 |
| Srebf2 | 2.764174 |
| Ubtf | 2.616793 |
# We keep only the ones in the PKN graph
measurements2 = significant_tfs2.loc[significant_tfs2.index.intersection(G.V)].to_dict()["Leukemic_SB.vs.Normal"]
measurements2
{'Myc': 5.395146369934082,
'Asxl1': 3.256416082382202,
'Bcor': 2.9564368724823,
'Srebf2': 2.764174461364746,
'Ubtf': 2.616792917251587,
'Hoxa9': -2.6575746536254883,
'Pax5': -2.813767671585083,
'Sp3': -2.854238510131836,
'Foxo3': -2.857527256011963,
'Mecom': -2.883071184158325,
'Cebpb': -2.8957369327545166,
'Ets1': -3.012101888656616,
'Dot1l': -3.0354621410369873,
'Irf9': -3.061843156814575,
'Pax2': -3.125239133834839,
'Pax6': -3.176431655883789,
'Nkx3-1': -3.185379981994629,
'Stat6': -3.2588818073272705,
'Phox2a': -4.103046894073486,
'Runx1': -5.518087387084961,
'Pknox1': -5.823720455169678,
'Fli1': -6.548583507537842,
'Gata1': -8.030933380126953}
def balance_dicts_by_top_abs(dict1, dict2, discretize=False):
# Decide which is smaller and which is larger
if len(dict1) <= len(dict2):
small, large = dict1, dict2
else:
small, large = dict2, dict1
n = len(small)
# Take the n keys from large with the largest abs(values)
top_large_items = sorted(large.items(), key=lambda kv: abs(kv[1]), reverse=True)[:n]
# Prepare output dicts
small_balanced = dict(small) # already of size n
large_balanced = dict(top_large_items)
if discretize:
small_balanced = {k: np.sign(v) for k, v in small_balanced.items()}
large_balanced = {k: np.sign(v) for k, v in large_balanced.items()}
return small_balanced, large_balanced
# Discretize not needed, but simplifies multi-cond analysis since both conditions have the same cost
d_measurements1, d_measurements2 = balance_dicts_by_top_abs(measurements1, measurements2, discretize=True)
d_measurements1
{'Myc': 1.0,
'Asxl1': 1.0,
'Bcor': 1.0,
'Srebf2': 1.0,
'Ubtf': 1.0,
'Hoxa9': -1.0,
'Pax5': -1.0,
'Sp3': -1.0,
'Foxo3': -1.0,
'Mecom': -1.0,
'Cebpb': -1.0,
'Ets1': -1.0,
'Dot1l': -1.0,
'Irf9': -1.0,
'Pax2': -1.0,
'Pax6': -1.0,
'Nkx3-1': -1.0,
'Stat6': -1.0,
'Phox2a': -1.0,
'Runx1': -1.0,
'Pknox1': -1.0,
'Fli1': -1.0,
'Gata1': -1.0}
d_measurements2
{'Gata1': -1.0,
'Runx1': -1.0,
'Sp1': -1.0,
'Myc': 1.0,
'Sp3': -1.0,
'Stat6': -1.0,
'Fli1': -1.0,
'Foxo3': -1.0,
'Ets1': -1.0,
'Cebpb': -1.0,
'Pknox1': -1.0,
'Srf': -1.0,
'Ubtf': 1.0,
'Pax3': -1.0,
'Vdr': -1.0,
'Nfatc1': -1.0,
'Pax6': -1.0,
'Nr3c1': -1.0,
'Spi1': -1.0,
'Esr1': -1.0,
'Fos': -1.0,
'Rara': -1.0,
'Ppard': -1.0}
Creating a CARNIVAL problem per condition#
Contrast 1: Leukemic_spontaneous vs Normal#
# We will infer the direction, so for the inputs, we use a value of 0 (=unknown direction)
inputs1 = {k: 0 for k in df_top_receptors1.index.intersection(G.V).values}
inputs1
{'Ifngr1': 0,
'Lrrc4c': 0,
'Tnfrsf11a': 0,
'Cdon': 0,
'Notch1': 0,
'Ptprs': 0,
'Nlgn2': 0,
'Flt3': 0,
'Ephb4': 0,
'Il2rg': 0,
'Marco': 0,
'Axl': 0,
'Tlr4': 0,
'Ifngr2': 0,
'Znrf3': 0}
# Create the dataset in standard format
carnival_data1 = dict()
for inp, v in inputs1.items():
carnival_data1[inp] = dict(value=v, role="input", mapping="vertex")
for out, v in d_measurements1.items():
carnival_data1[out] = dict(value=v, role="output", mapping="vertex")
data1 = cn.Data.from_cdict({"sample1": carnival_data1})
data1
Data(n_samples=1, n_feats=[38])
Contrast 2: Leukemic_SB vs Normal#
# We will infer the direction, so for the inputs, we use a value of 0 (=unknown direction)
inputs2 = {k: 0 for k in df_top_receptors2.index.intersection(G.V).values}
inputs2
{'Ptprs': 0,
'Nlgn2': 0,
'Lrrc4c': 0,
'Tnfrsf11a': 0,
'Ifngr1': 0,
'Marco': 0,
'Ifngr2': 0,
'Ctla4': 0,
'Znrf3': 0,
'Flt3': 0,
'Ephb4': 0,
'Il9r': 0,
'Icam1': 0,
'Axl': 0}
# Create the dataset in standard format
carnival_data2 = dict()
for inp, v in inputs2.items():
carnival_data2[inp] = dict(value=v, role="input", mapping="vertex")
for out, v in d_measurements2.items():
carnival_data2[out] = dict(value=v, role="output", mapping="vertex")
data2 = cn.Data.from_cdict({"sample2": carnival_data2})
data2
Data(n_samples=1, n_feats=[37])
Solving multi-condition CARNIVAL problem with CORNETO#
data = cn.Data.from_cdict({"sample1": carnival_data1, "sample2": carnival_data2})
data
Data(n_samples=2, n_feats=[38 37])
from corneto.utils import check_gurobi
check_gurobi()
Gurobipy successfully imported.
Gurobi environment started successfully.
Starting optimization of the test model...
Test optimization was successful.
Gurobi environment disposed.
Gurobi is correctly installed and working.
True
def subgraph(G, inp, out):
inp_s = set(G.V).intersection(inp)
out_s = set(G.V).intersection(out)
Gs = G.prune(inp_s, out_s)
tot_inp = set(Gs.V).intersection(inp)
tot_out = set(Gs.V).intersection(out)
print(f"Inputs: ({len(tot_inp)}/{len(inp)}), Outputs: ({len(tot_out)}/{len(out)})")
return Gs
Gs1 = subgraph(G, df_top_receptors1.index.tolist(), list(d_measurements1.keys()))
Gs2 = subgraph(G, df_top_receptors2.index.tolist(), list(d_measurements2.keys()))
Inputs: (7/30), Outputs: (19/23)
Inputs: (4/30), Outputs: (22/23)
<corneto.graph._graph.Graph at 0x31cfdfd90>
c = CarnivalFlow(lambda_reg=0, indirect_rule_penalty=1)
P = c.build(G, data)
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
len(set(c.processed_graph.V).intersection(d_measurements1.keys()))
19
len(set(c.processed_graph.V).intersection(d_measurements2.keys()))
22
# How many TFs are in common between conditions?
s1 = set(c.processed_graph.V).intersection(d_measurements1.keys())
s2 = set(c.processed_graph.V).intersection(d_measurements2.keys())
for g in s1.intersection(s2):
print(g, d_measurements1[g], d_measurements2[g])
Gata1 -1.0 -1.0
Foxo3 -1.0 -1.0
Sp3 -1.0 -1.0
Myc 1.0 1.0
Runx1 -1.0 -1.0
Fli1 -1.0 -1.0
Cebpb -1.0 -1.0
Stat6 -1.0 -1.0
Pax6 -1.0 -1.0
Ets1 -1.0 -1.0
Ubtf 1.0 1.0
Which is the best lambda to choose?#
To choose a robust value of \(\lambda\) we sample multiple solutions, as in the tutorial https://saezlab.github.io/corneto/dev/tutorials/network-sampler.html#vertex-based-perturbation.
We define 3 metrics to choose \(\lambda\):
\(sign\_agreement\_ratio = \frac{n.\:of\:nodes\:matching\:sign\:with\:stat\:value}{total\:n.\:of\:nodes}\)
\(de\_overlap\_ratio = \frac{n.\:of\:nodes\:also\:differentially\:expressed}{total\:n.\:of\:nodes}\)
\(overall\_agreement = \frac{sign\_agreement\_ratio\:+\:de\_overlap\_ratio}{2}\)
# retrieving alternative network solutions. This snippet will take a while to run
from corneto.methods.sampler import sample_alternative_solutions
lambda_val = [0, 0.01, 0.1, 0.2, 0.3, 0.5, 0.7, 0.9, 0.95]
other_optimal_v = dict() # collecting the vertex sampled solutions for each lambda
index = dict()
for i in lambda_val:
print("lambda: ", i)
c = CarnivalFlow(lambda_reg=i, indirect_rule_penalty=1)
P = c.build(G, data)
vertex_results = sample_alternative_solutions(
P,
"vertex_value",
percentage=0.03,
scale=0.03,
rel_opt_tol=0.05,
max_samples=30, # number of alternative solutions to sample
solver_kwargs=dict(solver="gurobi", max_seconds=max_time, mip_gap=0.01, seed=seed),
)
other_optimal_v["lambda" + str(i)] = vertex_results["vertex_value"]
index["lambda" + str(i)] = c.processed_graph.V
lambda: 0
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
Set parameter Username
Set parameter LicenseID to value 2593994
Academic license - for non-commercial use only - expires 2025-12-02
lambda: 0.01
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.1
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.2
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.3
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.5
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.7
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.9
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
lambda: 0.95
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
def compute_nodes_metrics(nodes, inputs, measurements, results_df, column):
"""Computes the metrics for the nodes in the network based on the provided inputs, measurements, and results dataframe.
Args:
nodes (pd.DataFrame): data frame containing the node scores per condition.
inputs (dict): Dictionary of input nodes with their values.
measurements (dict): Dictionary of output nodes with their values.
results_df (pd.DataFrame): DataFrame containing the results of differential expression analysis.
column (str): Column name to be used for filtering conditions.
Returns:
sign_agreement_ratio (float): Ratio of nodes with the same sign as the DE analysis.
de_overlap_ratio (float): Ratio of DE genes that overlap with the nodes.
overall_agreement (float): Overall agreement between DE genes and nodes.
"""
nodes = nodes.loc[(nodes[column] != 0.0)][column] # nodes with a score different from 0
de = results_df.loc[results_df["padj"] < 0.05].index.tolist() # de genes
in_out_nodes = set(measurements.keys()).union(
set(nodes.index[nodes.index.isin(inputs.keys())])
) # collecting input and output nodes which we don´t want to evaluate
middle_nodes = set(nodes.index).difference(in_out_nodes)
commmon_genes = list(
set(results_df.index).intersection(middle_nodes)
) # common genes between network and DE analysis genes
stat = results_df.loc[commmon_genes, "stat"]
stat_sign = np.sign(stat)
middle_nodes_sign = np.sign(nodes.loc[commmon_genes])
sign_agreement_ratio = 0
if len(middle_nodes_sign) > 0:
sign_agreement_ratio = (middle_nodes_sign == stat_sign).sum() / len(middle_nodes_sign)
de_overlap_ratio = 0
if len(middle_nodes) > 0:
de_overlap_ratio = len(set(de).intersection(middle_nodes)) / len(middle_nodes)
overall_agreement = (np.array(de_overlap_ratio) + np.array(sign_agreement_ratio)) / 2
return sign_agreement_ratio, de_overlap_ratio, overall_agreement
# Initialize metric containers
metrics_avg_1_per_lambda = []
metrics_avg_2_per_lambda = []
metrics_sd_1_per_lambda = []
metrics_sd_2_per_lambda = []
for k in other_optimal_v.keys():
metrics1_per_sample = []
metrics2_per_sample = []
for i in range(len(other_optimal_v[k])):
n = pd.DataFrame(
other_optimal_v[k][i],
index=index[k],
columns=["vertex_activity1", "vertex_activity2"],
) # retrieving node scores
sign_agreement1, de_overlap1, overall_agreement1 = compute_nodes_metrics(
n, inputs1, d_measurements1, results_df1, "vertex_activity1"
)
sign_agreement2, de_overlap2, overall_agreement2 = compute_nodes_metrics(
n, inputs2, d_measurements2, results_df2, "vertex_activity2"
)
metrics1_per_sample.append(
{
"sign_agreement": sign_agreement1,
"de_overlap": de_overlap1,
"overall": overall_agreement1,
}
)
metrics2_per_sample.append(
{
"sign_agreement": sign_agreement2,
"de_overlap": de_overlap2,
"overall": overall_agreement2,
}
)
metrics1_per_sample_df = pd.DataFrame(metrics1_per_sample)
metrics2_per_sample_df = pd.DataFrame(metrics2_per_sample)
metrics_avg_1_per_lambda.append(metrics1_per_sample_df.mean().to_dict())
metrics_avg_2_per_lambda.append(metrics2_per_sample_df.mean().to_dict())
metrics_sd_1_per_lambda.append(metrics1_per_sample_df.std().to_dict())
metrics_sd_2_per_lambda.append(metrics2_per_sample_df.std().to_dict())
# Convert lists of dictionaries to DataFrames
m_avg_df1 = pd.DataFrame(metrics_avg_1_per_lambda)
m_avg_df2 = pd.DataFrame(metrics_avg_2_per_lambda)
m_sd_df1 = pd.DataFrame(metrics_sd_1_per_lambda)
m_sd_df2 = pd.DataFrame(metrics_sd_2_per_lambda)
##plotting metrics
import matplotlib.pyplot as plt

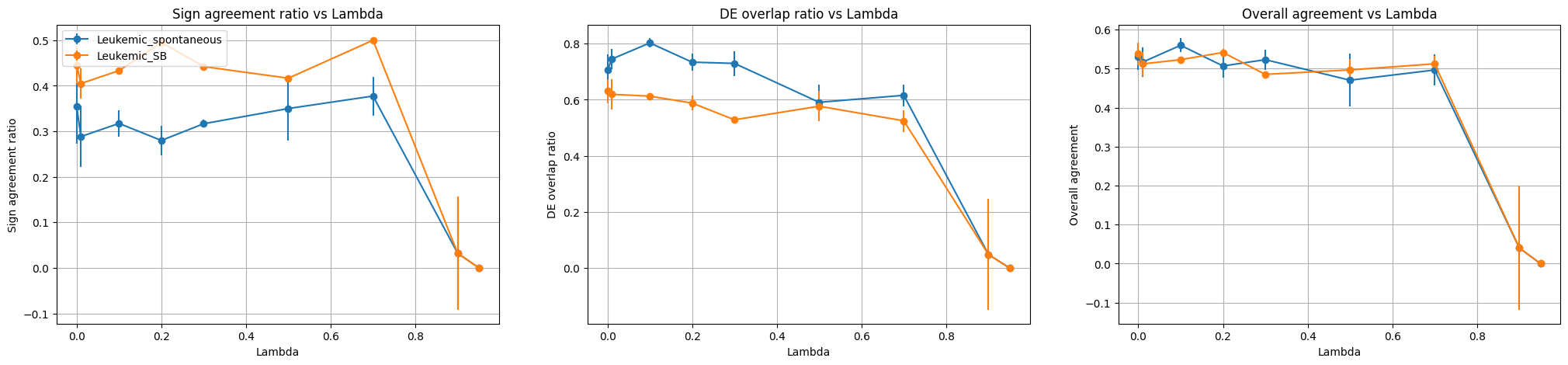

metric_name = ["sign_agreement", "de_overlap", "overall"]
metric_label = ["Sign agreement ratio", "DE overlap ratio", "Overall agreement"]
fig, axes = plt.subplots(1, 3, figsize=(25, 5), sharex=True)
for i in range(len(metric_name)):
axes[i].errorbar(
lambda_val,
m_avg_df1[metric_name[i]],
yerr=m_sd_df1[metric_name[i]],
label="Leukemic_spontaneous",
marker="o",
)
axes[i].errorbar(
lambda_val,
m_avg_df2[metric_name[i]],
yerr=m_sd_df2[metric_name[i]],
label="Leukemic_SB",
marker="o",
)
axes[i].grid()
axes[i].set_xscale("linear") # adjust scale according to your results
axes[i].set_xlabel("Lambda")
axes[i].set_ylabel(metric_label[i])
axes[i].set_title(metric_label[i] + " vs Lambda")
if i == 0:
axes[i].legend(loc="upper left")
We choose the lambda value basing on the Overall agreement metric. In this case a reasonable value of \(\lambda\) is 2
c = CarnivalFlow(lambda_reg=0.5,indirect_rule_penalty=1)
P = c.build(G, data)
# Optimal solutions are found when Gap is close to 0
P.solve(solver="GUROBI", verbosity=1)
Unreachable vertices for sample: 25
Unreachable vertices for sample: 14
===============================================================================
CVXPY
v1.6.5
===============================================================================
(CVXPY) Jun 06 04:25:39 PM: Your problem has 16902 variables, 47640 constraints, and 1 parameters.
(CVXPY) Jun 06 04:25:39 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Jun 06 04:25:39 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
(CVXPY) Jun 06 04:25:39 PM: Your problem is compiled with the CPP canonicalization backend.
-------------------------------------------------------------------------------
Compilation
-------------------------------------------------------------------------------
(CVXPY) Jun 06 04:25:39 PM: Compiling problem (target solver=GUROBI).
(CVXPY) Jun 06 04:25:39 PM: Reduction chain: CvxAttr2Constr -> Qp2SymbolicQp -> QpMatrixStuffing -> GUROBI
(CVXPY) Jun 06 04:25:39 PM: Applying reduction CvxAttr2Constr
(CVXPY) Jun 06 04:25:39 PM: Applying reduction Qp2SymbolicQp
(CVXPY) Jun 06 04:25:39 PM: Applying reduction QpMatrixStuffing
(CVXPY) Jun 06 04:25:39 PM: Applying reduction GUROBI
(CVXPY) Jun 06 04:25:39 PM: Finished problem compilation (took 7.523e-02 seconds).
(CVXPY) Jun 06 04:25:39 PM: (Subsequent compilations of this problem, using the same arguments, should take less time.)
-------------------------------------------------------------------------------
Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Jun 06 04:25:39 PM: Invoking solver GUROBI to obtain a solution.
Set parameter OutputFlag to value 1
Set parameter QCPDual to value 1
Gurobi Optimizer version 12.0.2 build v12.0.2rc0 (mac64[arm] - Darwin 24.5.0 24F74)
CPU model: Apple M4 Pro
Thread count: 12 physical cores, 12 logical processors, using up to 12 threads
Non-default parameters:
QCPDual 1
Optimize a model with 47640 rows, 16902 columns and 169821 nonzeros
Model fingerprint: 0x5a0a2a3f
Variable types: 4062 continuous, 12840 integer (12840 binary)
Coefficient statistics:
Matrix range [5e-01, 7e+02]
Objective range [5e-01, 2e+00]
Bounds range [1e+00, 1e+00]
RHS range [1e+00, 1e+03]
Found heuristic solution: objective 0.0000000
Presolve removed 23196 rows and 1817 columns
Presolve time: 0.36s
Presolved: 24444 rows, 15085 columns, 140655 nonzeros
Variable types: 3564 continuous, 11521 integer (11505 binary)
Deterministic concurrent LP optimizer: primal and dual simplex
Showing primal log only...
Concurrent spin time: 0.00s
Solved with dual simplex
Root relaxation: objective -1.056250e+01, 2374 iterations, 0.11 seconds (0.28 work units)
Nodes | Current Node | Objective Bounds | Work
Expl Unexpl | Obj Depth IntInf | Incumbent BestBd Gap | It/Node Time
0 0 -10.56250 0 73 0.00000 -10.56250 - - 0s
0 0 -10.56250 0 73 0.00000 -10.56250 - - 0s
0 0 -9.82812 0 140 0.00000 -9.82812 - - 0s
0 0 -9.75000 0 49 0.00000 -9.75000 - - 0s
0 0 -9.35547 0 165 0.00000 -9.35547 - - 0s
0 0 -9.33594 0 161 0.00000 -9.33594 - - 0s
0 0 -9.17204 0 178 0.00000 -9.17204 - - 0s
0 0 -9.12500 0 109 0.00000 -9.12500 - - 1s
0 0 -9.12500 0 97 0.00000 -9.12500 - - 1s
0 0 -9.12500 0 98 0.00000 -9.12500 - - 1s
H 0 0 -0.5000000 -9.12500 1725% - 1s
0 0 -9.12500 0 98 -0.50000 -9.12500 1725% - 1s
0 0 -9.00000 0 62 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 79 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 110 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 110 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 13 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 13 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 13 -0.50000 -9.00000 1700% - 1s
0 0 -9.00000 0 13 -0.50000 -9.00000 1700% - 2s
0 0 -9.00000 0 64 -0.50000 -9.00000 1700% - 2s
0 0 -9.00000 0 64 -0.50000 -9.00000 1700% - 2s
0 0 -9.00000 0 13 -0.50000 -9.00000 1700% - 2s
0 0 -9.00000 0 13 -0.50000 -9.00000 1700% - 2s
0 2 -8.93817 0 12 -0.50000 -8.93817 1688% - 2s
H 231 239 -5.0000000 -8.93817 78.8% 248 3s
H 271 273 -5.5000000 -8.93817 62.5% 234 3s
H 408 381 -6.0000000 -8.93817 49.0% 199 4s
H 805 676 -8.0000000 -8.93817 11.7% 156 4s
1229 609 -8.50000 10 12 -8.00000 -8.93817 11.7% 127 5s
Cutting planes:
Gomory: 17
Cover: 105
Implied bound: 57
Clique: 42
MIR: 64
Inf proof: 4
Zero half: 13
RLT: 11
Relax-and-lift: 10
Explored 3276 nodes (288205 simplex iterations) in 6.08 seconds (14.72 work units)
Thread count was 12 (of 12 available processors)
Solution count 6: -8 -6 -5.5 ... 0
No other solutions better than -8
Optimal solution found (tolerance 1.00e-04)
Best objective -8.000000000000e+00, best bound -8.000000000000e+00, gap 0.0000%
-------------------------------------------------------------------------------
Summary
-------------------------------------------------------------------------------
(CVXPY) Jun 06 04:25:45 PM: Problem status: optimal
(CVXPY) Jun 06 04:25:45 PM: Optimal value: 3.300e+01
(CVXPY) Jun 06 04:25:45 PM: Compilation took 7.523e-02 seconds
(CVXPY) Jun 06 04:25:45 PM: Solver (including time spent in interface) took 6.276e+00 seconds
Problem(Minimize(Expression(AFFINE, UNKNOWN, (1,))), [Inequality(Constant(CONSTANT, ZERO, (2568,))), Inequality(Variable((2568,), _flow)), Inequality(Constant(CONSTANT, ZERO, (747, 2))), Inequality(Variable((747, 2), _dag_layer)), Equality(Expression(AFFINE, UNKNOWN, (747,)), Constant(CONSTANT, ZERO, ())), Inequality(Expression(AFFINE, NONNEGATIVE, (2568, 2))), Equality(Expression(AFFINE, UNKNOWN, (25,)), Constant(CONSTANT, ZERO, ())), Equality(Expression(AFFINE, NONNEGATIVE, (25,)), Constant(CONSTANT, ZERO, ())), Equality(Expression(AFFINE, NONNEGATIVE, (25,)), Constant(CONSTANT, ZERO, ())), Equality(Expression(AFFINE, UNKNOWN, (14,)), Constant(CONSTANT, ZERO, ())), Equality(Expression(AFFINE, NONNEGATIVE, (14,)), Constant(CONSTANT, ZERO, ())), Equality(Expression(AFFINE, NONNEGATIVE, (14,)), Constant(CONSTANT, ZERO, ())), Inequality(Expression(AFFINE, NONNEGATIVE, (747, 2))), Inequality(Expression(AFFINE, UNKNOWN, (2531,))), Inequality(Expression(AFFINE, UNKNOWN, (2531,))), Inequality(Constant(CONSTANT, NONNEGATIVE, (688,))), Inequality(Expression(AFFINE, UNKNOWN, (2531,))), Inequality(Expression(AFFINE, UNKNOWN, (2531,))), Inequality(Constant(CONSTANT, NONNEGATIVE, (688,))), Inequality(Expression(AFFINE, NONNEGATIVE, (2568, 2))), Inequality(Expression(AFFINE, NONNEGATIVE, (2561, 2))), Inequality(Expression(AFFINE, NONNEGATIVE, (2561, 2))), Equality(Expression(AFFINE, NONNEGATIVE, (3,)), Constant(CONSTANT, ZERO, ())), Equality(Expression(AFFINE, NONNEGATIVE, (3,)), Constant(CONSTANT, ZERO, ())), Inequality(Expression(AFFINE, NONNEGATIVE, (2568,))), Inequality(Variable((2568,), edge_has_signal_OR, boolean=True))])
# optimization metrics
for o in P.objectives:
print(o.name, o.value)
error_sample1_0 9.0
penalty_indirect_rules_0 [0.]
error_sample2_1 10.0
penalty_indirect_rules_1 [0.]
regularization_edge_has_signal_OR 28.0
# having a look to edge values per condition
pd.DataFrame(
P.expr.edge_value.value,
index=c.processed_graph.E,
columns=["edge_activity1", "edge_activity2"],
).head(5)
| edge_activity1 | edge_activity2 | ||
|---|---|---|---|
| (Mapk14) | (Mapkapk2) | 0.0 | 0.0 |
| (Map2k3) | (Dyrk1b) | 0.0 | 0.0 |
| (Akt1) | (Chuk) | 0.0 | 0.0 |
| (Cdkn1a) | (Cdk1) | 0.0 | 0.0 |
| (Mdc1) | (Rnf8) | 0.0 | 0.0 |
# having a look to node values per condition
pd.DataFrame(
P.expr.vertex_value.value,
index=c.processed_graph.V,
columns=["vertex_activity1", "vertex_activity2"],
).head(5)
| vertex_activity1 | vertex_activity2 | |
|---|---|---|
| Ulk1 | 0.0 | 0.0 |
| Siah1a | 0.0 | 0.0 |
| Sp1 | 0.0 | -1.0 |
| Hck | 0.0 | 0.0 |
| Ghr | 0.0 | 0.0 |
Inferred network for contrast 1: Leukemic_spontaneous vs Normal#
sol_edges1 = np.flatnonzero(np.abs(P.expr.edge_value.value[:, 0]) > 0.5)
c.processed_graph.plot_values(
vertex_values=P.expr.vertex_value.value[:, 0],
edge_values=P.expr.edge_value.value[:, 0],
edge_indexes=sol_edges1,
)
Inferred network for contrast 2: Leukemic_SB vs Normal#
sol_edges2 = np.flatnonzero(np.abs(P.expr.edge_value.value[:, 1]) > 0.5)
c.processed_graph.plot_values(
vertex_values=P.expr.vertex_value.value[:, 1],
edge_values=P.expr.edge_value.value[:, 1],
edge_indexes=sol_edges2,
)
